Sensor Accessories

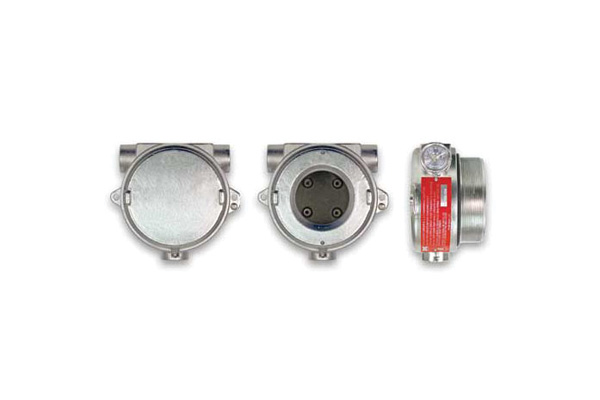

[av_tab_container position='sidebar_tab sidebar_tab_left' boxed='border_tabs' initial='1'] [av_tab title='Instrument Enclosures for Hazardous Areas' icon_select='no' icon='ue800' font='entypo-fontello'] Detcon's condulet enclosures are designed to house a wide range of instruments used to detect, measure, control and monitor within hazardous areas. Application � Provide protection against exterior explosion � Protect conductors in threaded rigid conduit � Act as pull and splice boxes � Interconnect lengths of conduit � Change conduit direction � Access conductors for maintenance & system changes Three Versions Available: Standard 316 Stainless Steel Junction Box � NEMA 7 J-Box with Solid or Glass Lens Cover � Class I, Div I Groups B,C,D � Class I, Zone 0 Group IIB + Hydrogen � CSA approved to Canadian & UL Requirements � ATEX Certified Aluminum Junction Box � NEMA 7 J-Box with Solid or Glass Lens Cover � Class I, Div I Groups B,C,D � Class I, Zone 0 Group IIB + Hydrogen � CSA approved to Canadian & UL Requirements � ATEX Certified Mini 316 Stainless Steel Junction Box � NEMA 7 J-Box with Solid Cover � Class I, Div I Groups A,B,C,D � Class I, Zone 0 Group IIC � CSA approved to Canadian & UL Requirements Standard 316SS�Junction Box Aluminium�Junction Box Mini 316SS�Junction Box [/av_tab] [av_tab title='Sensor Duct Mount Kits' icon_select='no' icon='ue800' font='entypo-fontello'] The Detcon Sensor Duct Mount Kit allows a Detcon gas sensor assembly to be mounted so that its sensor is located inside of an air duct, while its transmitter, located outside the duct, is still accessible for calibration and other adjustments. This method of installation is much more economical than the typical sample draw type system that is normally used in such applications. Features � Adaptable to square & round ducts � In-situ calibration port � Sensor readily serviceable Sensor Duct�Mount Kit [/av_tab] [/av_tab_container]
