Fixed Gas Sensors

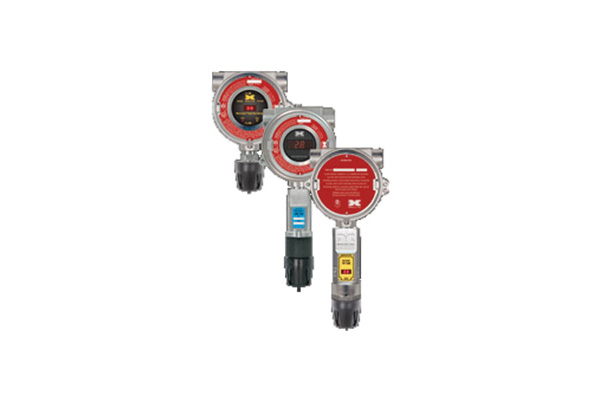

Detcon manufactures the most rugged and diverse fixed gas detection sensors for a wide range of industrial applications� the Model 700, MicroSafe� Models 500/600, and the Model 100. The Model 700 is a state-of-the-art intelligent sensor specifically designed for harsh environments and extreme locations, Models 500/600 feature Detcon's MicroSafe intuitive software, and the Model 100 is a back-to-basics high quality, low power, no frills gas detection sensor. All Detcon sensor assemblies are designed as easy-to-use field replaceable plug-in sensors with intelligent electronics and a non-instrusive operator interface. [fusion_tabs design="clean" layout="vertical" justified="yes" backgroundcolor="" inactivecolor="" bordercolor="" class="" id=""] [fusion_tab title="Model Series 700 Gas Detection Sensors" icon=""] Detcon Model Series 700 industrial gas detection sensors are a new generation of intelligent sensor modules that incorporate and integrate several leading edge improvements. The sensors are specifically designed for harsh and extreme locations. This new and superior level of environmental durability in sensor design includes an electropolished 316 stainless steel housing, multi-layered transient spike protection circuitry and 100% encapsulated electronics. The sensor electronics are completely protected and immune to water ingress and corrosion. The gas detector sensor elements are all plug-in components and can easily be replaced in the field. Operator interface is non-intrusive via a small handheld magnet. Configuration and routine calibration is intuitive and menu driven with fully scripted instructions. Sensor status is displayed on a built-in alphanumeric LED display. Model Series 700 intelligent sensor modules feature dual redundant outputs, a linear 4-20 milliamp analog signal and a Modbus RS-485 serial output. Solid State H2S�Chemfet MOS (TP) Combustilble Gas�Catalytic Bead (FP)Combustible�Hydrocarbons�Infrared (IR) Carbon Dioxide CO2�Infrared (IR) Oxygen Deficiency (O2) VOCs�Photo Ionization (PI) [/fusion_tab] [fusion_tab title="MicroSafe� Gas Detection Sensors" icon=""] Detcon MicroSafe� Series intelligent gas detection sensors feature Detcon's MicroSafe� intuitive software. Operator interface is non-intrusive using a hand-held magnet and program switches accessed through a glass lens cover. Calibration instructions appear in simple interactive and sequential script on a 16-character backlit alphanumeric display. The transmitter design incorporates extensive fault diagnostics with each condition conveniently identified on the transmitter display. The gas detector sensor elements and transmitters are plug-in components and can easily be replaced in the field. Model Series 500 comes standard with a linear 4-20 mA output, one-man remote calibration, self-adjusting zero and span, and LED indicators for fault and calibration status. Model Series 600 includes the same features as the 500 with the addition of 3 alarm relays and an RS-485 serial communications port. Solid State H2S�Chemfet MOS (TP) TP-524D TP-624D Combustilble Gas�Catalytic Bead (FP) FP-524D 500HT High Temp 600HT High Temp FP-624D Combustible�Hydrocarbons�Infrared (IR) 500 600 Carbon Dioxide CO2�Infrared (IR) 500 640 642 Oxygen Deficiency (O2) 500 600 [/fusion_tab] [fusion_tab title="Model 100 Gas Detection Sensors" icon=""] Detcon Model 100 Series sensors feature intelligent electronics, non-intrusive operator interface and comprehensive fault diagnostics. The sensor is packaged in an electro-polished 316 stainless steel housing fitted with a � inch NPT thread. The plug-in, field replaceable sensor features large surface area gold-plated pins that reduce the effects of corrosion in harsh industrial environments. Signal conditioning electronics are completely encapsulated in the sensor housing adding a high level of durability to the design. The packaging is Explosion Proof (Class I, Div. 1 Groups B, C, D). Model 100 is equipped with a standard analog 4-20 mA current signal equivalent to the sensor range of detection. Upper enclosure options are aluminum and stainless steel (includes a transient protection terminal board). Additional accessories include wireless communications, a loop powered digital display, Remote Alarm Module (RAM), HART, and a current to RS-485 converter. The standard serial converter is Modbus RTU. Each sensor is shipped with a splash guard with integral calibration port. Model DM-100 provides a wide range of toxic gas sensors and oxygen that uses electrochemical technology. [/fusion_tab] [fusion_tab title="MultiFlame Flame Detectors" icon=""] The MultiFlame DF-TV7-T is a multi-spectrum infrared flame detector using three wavelengths to respond to hydrocarbon fires and is the right choice for operation in dirty environments or for detection of smoky fires.The MultiFlame DF-TV7-V is a combined ultraviolet/infrared flame detector offering excellent long range detection. Both maintain outstanding false alarm immunity and are configurable using a hazardous area approved wireless hand held terminal (TLU). Model DF-TV7-T issuitable for use in SIL3 applications while Model DF-TV7-V is suitable for use in SIL2 applications. MultiFlame DF-TV7-T�Triple IR MultiFlame DF-TV7-V�UV/Dual IR [/fusion_tab] [fusion_tab title="GD10L Open Path Infrared Hydrocarbon Detector" icon=""] The GD10L provides an effective response to the detection of gas hazards in a wide range of industrial environments from boiler plant rooms to offshore petrochemical installations. GD10L Open Path Infrared Hydrocarbon Detector [/fusion_tab] [fusion_tab title="GD1 Laser Open Path H2S Gas Detector" icon=""] The GD1 sets a new standard for toxic gas detection. Using a tuneable laser diode the GD1 delivers enhanced coverage and fail safe detection. The performance improvement marks a genuine step change for safety systems and life cycle cost savings. At the heart of the detector is a tuneable laser diode that eliminates environmental effects from sun, rain and fog. The laser scans single absorption lines where there is no interference from other gases. Unlike traditional methods for detecting H2S (MOS or EC cell) the GD1 needs no recalibration and can replace multiple standard detectors to cover the same risk. GD1 Laser Open Path H2S Gas Detector [/fusion_tab] [fusion_tab title="GD10 Series IR Point Gas Detectors" icon=""] The GD10 Series uses state of the art IR gas measurement to give a fast, reliable response. The GD10P has set the standard for gas detection in the areas of safety, stability and low maintence. The GD10 differs from all other point infrared gas detectors, because it utilises silicon based solid-state sources. The complete optomechanical design and constructions is so stable that an ultra fast speed of response can be achieved whilst providing unparalleled service life and detector stability, thus saving on maintenance and service costs. The GD10 offers the longest combined detector and IR source warranty on the market. And is supplied with worldwide hazardous area approvals. Suitable for use in SIL 2 systems. An industry standard HART interface is used for configuration of special fault levels as well as access to extended maintenance data. GD10P�IR Combustible GD10P-CO2�IR Carbon Dioxide GD10PE�Extended Point IR Combustible [/fusion_tab] [fusion_tab title="iTrans 2 Fixed Gas Detector" icon=""] Remote Diagnostics, Set-up or Calibration The iTrans 2 fixed gas detector employs an intelligent electronics platform to provide one or two points of detection from a single head for maximum flexibility, superior performance and lower installation costs. With the optional HART Communication Protocol, the iTrans 2 offers remote diagnostics, set-up or calibration by superimposing a high-frequency current across the industry standard 4-20mA analog line. Smart Infrared Gas Sensor Technology and Safety Features Able to detect any combination of gases for a specific environment, iTrans 2 utilizes our industry-proven �smart� infrared gas sensor technology and safety features including automatic sensor recognition, access code security, and zero and cal fault protection � all enclosed within an explosion-proof aluminum or stainless steel housing. The microprocessor-controlled transmitters are capable of independent operation or multi-point system configuration. The infrared sensor provides explosive gas detection (methane, butane, propane, ethylene, hexane, etc.) in more severe environmental conditions, where the presence of poisons could harm the use of a catalytic cell. In addition to the LEL sensor range, the iTrans 2 detector can also be configured with a 0-100% volume methane infrared sensor for bio-gas applications and CO2 infrared sensors ranging from 0.5% volume to 100% volume. Stand-Alone Operation With optional on-board relays, this fixed gas detector has the added ability of stand-alone operation, activating alarms, horns, or fans and can also shut down a system without the need to wire back to a central control panel. iTrans 2 Fixed Gas Detector [/fusion_tab] [fusion_tab title="DG Series Gas Detectors" icon=""] The DG Series gas detectors are constructed from a common housing and consist of the MultiTox Electrochemical for toxic gases, the MultiXplo Catalytic for flammable gases and the MultiTox Solid State MOS for hydrogen sulfide.The intelligent, microprocessor driven unit is fully configurable using a wireless handheld terminal (TLU) or optionally via HART giving true flexibility to the installer. Parameters such as relay operation and alarm levels are all set via the TLU, hazardous area approved handheld unit. DG-TX7 MultiXplo�Catalytic Flammable DGI-TT7 MultiTox�Electrochem Toxic DG-TT7 MOS H2S [/fusion_tab] [/fusion_tabs]
